Artificial Intelligence - 5
AIM: Write a program to solve N-Queen problem using the A* search algorithm with Priority Queue and also find Execution time, completeness of algorithm, etc.
Consider following steps to create a
program in python:
1.
Create class
queen and state with appropriate member variables
2. Create class state with support of
compare state & sort state
3.
Create
appropriate heuristic function to solve this problem
4.
Use random, time,
heapq and matplotlib libraries of python

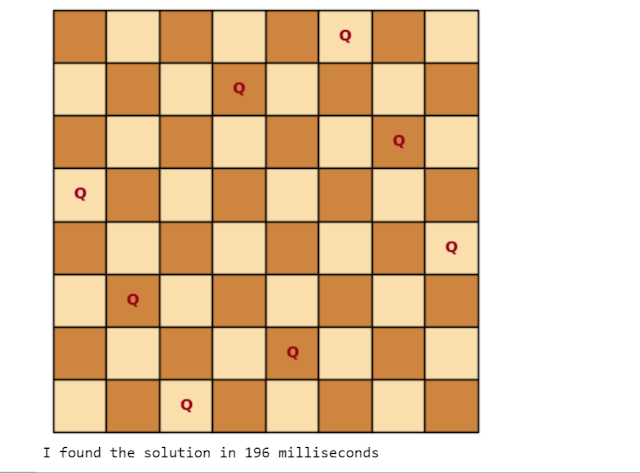

5. Output should be according to given image
import time
import queue
import random
import numpy as np
import matplotlib.pyplot as plt
from heapq import heappush, heappop, heapify
N = int(input("How Many Queen You want to place: "))
a = queue.Queue()
class PriorityQueue:
def __init__(self):
self.pq = []
def add(self, item):
heappush(self.pq, item)
def poll(self):
return heappop(self.pq)
def peek(self):
return self.pq[0]
def remove(self, item):
value = self.pq.remove(item)
heapify(self.pq)
return value is not None
def __len__(self):
return len(self.pq)
class queen:
def __init__(self):
self.row = -1
self.col = -1
def __cmp__(self, other):
return self.row == other.row and self.cok == other.col
def __eq__(self, other):
return self.__cmp__(other)
def __hash__(self):
return hash(str(self.list_()))
def list_(self):
return [self.row,self.col]
class state:
def __init__(self, data):
self.nQueen = [queen() for i in range(N)]
if(data != None):
self.moves = data.moves + 1
self.heuristicVal = data.heuristicVal
for i in range(N):
self.nQueen[i].row = data.nQueen[i].row
self.nQueen[i].col = data.nQueen[i].col
else:
self.moves = 0
self.initQueens()
self.parent = data
def getConflictCount(self,row,col):
count = 0
conflictCount = 0
ConflictSet = []
for i in range(N):
if(self.nQueen[i].row == row):
count+=1
ConflictSet.append(self.nQueen[i])
for i in range(N):
if(self.nQueen[i].col == col):
count+=1
ConflictSet.append(self.nQueen[i])
for i in range(N):
if(abs(self.nQueen[i].row - row) == abs(self.nQueen[i].col -col)):
count+=1
ConflictSet.append(self.nQueen[i])
for obj in ConflictSet:
if(not(obj.row == row and obj.col == col)):
conflictCount+=1
return conflictCount
def placeQueen(self,row,col):
if(row >= N or col >= N):
return
if(self.nQueen[col].row == row and self.nQueen[col].col == col):
return
self.nQueen[col].row = row
self.nQueen[col].col = col
self.heuristicVal = self.getHeuristicCost()
def printQueen(self):
for i in range(N):
for j in range(N):
if(self.nQueen[j].row == i):
print("1", end=" ")
else:
print("0", end=" ")
print()
print()
def drawQueens(self):
board = self.getMatrix()
matrix = np.zeros ((N, N))
matrix = matrix.astype(str)
for i in range(N):
for j in range (N):
if board[i][j] == 1:
matrix[i][j] = 'Q'
else:
matrix[i][j] =' '
w = 5
h = 5
plt.figure(1, figsize=(w, h))
tb = plt.table(cellText=matrix, loc=(0, 0), cellLoc='center')
for i in range(N):
for j in range(N):
if board[i][j] ==1:
tb._cells[(i, j)]._text.set_color('#960018')
tb._cells[(i, j)]._text.set_weight('extra bold')
if ((i + j) % 2) == 0:
tb._cells[(i, j)].set_facecolor('#CD853F')
else:
tb._cells[(i, j)].set_facecolor('#FADFAD')
tb._cells[(i, j)].set_height(1.0 / N)
tb._cells[(i, j)].set_width(1.0 / N)
ax = plt.gca()
ax.set_xticks([])
ax.set_yticks([])
plt.show()
def getMatrix(self):
board = np.zeros((N, N))
board.astype(int)
for j in range(N):
for i in range(N):
if(self.nQueen[i].row == j):
board[i][j] = 1
else:
board[i][j] = 0
return board
def initQueens(self):
for col in range(N):
row = random.randint(0,N-1)
self.placeQueen(row, col)
self.moves = 0
self.heuristicVal = self.getHeuristicCost()
def getHeuristicCost(self):
count = 0
for i in range(N):
count = count + self.getConflictCount(self.nQueen[i].row, self.nQueen[i].col)
return count
def score(self):
return self._h() + self._g()
def _h(self):
return self.heuristicVal
def _g(self):
return self.moves
def __cmp__(self, other):
if(other == None):
return False
return self.nQueen == other.nQueen
def __eq__(self, other):
return self.__cmp__(other)
def __hash__(self):
return hash(str(self.nQueen))
def __lt__(self, other):
return self.score() < other.score()
def nextAllState(self):
list1 = []
row = self.moves
for i in range(N):
if(not(self.nQueen[i].row == row and self.nQueen[i].col == i)):
nextState = state(self)
nextState.placeQueen(row, i)
list1.append(nextState)
return list1
def solve(initial_state):
openset = PriorityQueue()
openset.add(initial_state)
closed = set()
moves = 0
print("Trying to solve:")
print(openset.peek().printQueen(),'\n\n')
start = time.time()
while openset:
current = openset.poll()
if current.heuristicVal == 0:
end = time.time()
print('I found a solution')
current.printQueen()
current.drawQueens()
print('I found the solution in %2.f milliseconds'% float((end - start)*1000))
break
moves += 1
for state in current.nextAllState():
if state not in closed:
openset.add(state)
closed.add(current)
else:
print('I could not solve it!')
def main():
initial_state = state(None)
solve(initial_state)
if __name__ == '__main__':
main()
